Light Commercial / Whole House Reverse Osmosis System that produces 200 gallons per day. Wall mounted. System uses One 2.5" x 14" TFC HF1 Reverse Osmosis Membrane, for maximum rejection of impurities and high flow. Three vertical 20"x2.5" cartridges are: Sediment Filter, Carbon Block for chlorine, odor and VOCs removal, and a 5-stage GAC / Eagle ERA filter.
This Light commercial RO system is designed to be modular, requires little maintenance, and is built using commercial grade components, unlike a lot of lower cost 200 and 400 gpd RO systems on the market that use components for under sink systems and are not usually designed for commercial/whole house use. Our 200 and 400 gpd system has been carefully thought through and is designed for commercial use.
RO with Storage Tank Kit
Ready to use this as an top of the line protection to your home's drinking water? Here's a Storage Tank Kit, ready to be installed to provide you with a much larger range of applications. Filtered water will be stored and drawn from the tank, eliminating regular Whole House RO system's drawbacks such as low pressure and low flow.

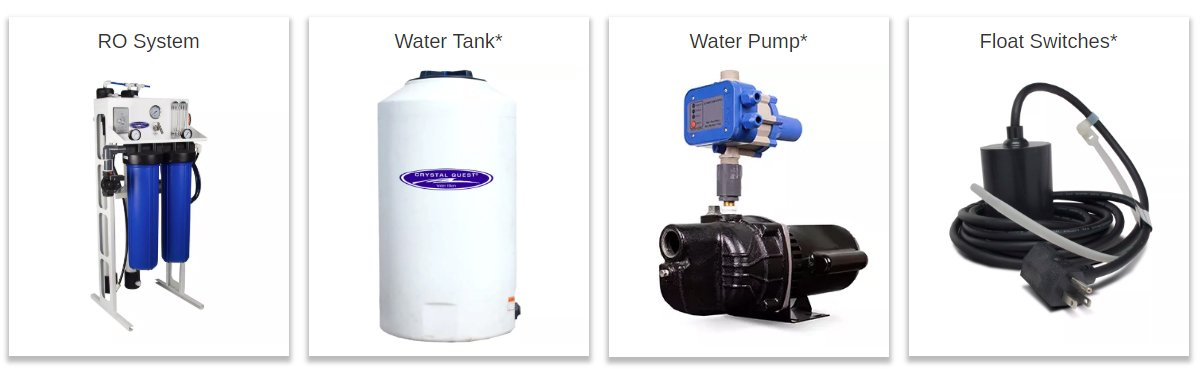

Storage Tank Kits Components
- RO System
- Water Tank - (165, 220, or 550 gallons storage tank) , this system of 200 gpd will come with 20 gallon tank if Storage Tank Kit is ordered.
- Pump
- Float Switches
Light Commercial RO 200 / 400 GPD System Features
Membrane: One 2.5" x 14" TFC HF1 Reverse Osmosis Membrane 200 GPD each
Membrane Housing: One 2.5" x 14" Champ membrane housings, Features a patented design and requires no tools for servicing.
Pump: 8800 Booster Pump, uses 110V AC.
Sediment Filter: One 2.5" x 20" Big White 5 micron sediment filter, Removes sediments and protects the system.
Carbon Block Filter: One 2.5" x 20" Big White 5 micron carbon block, Removes chlorine, odor, and taste from incoming feed water.
GAC/ERA Filter: One 2.5" x 20" coconut shell GAC (similar to KDF).
Filter Housing: Three 2.5" x 20" double O-ring filter housings, Offers durability and improved sealing capabilities.
RO Tank Pressure Switch, with 1/4" JG Ports, 20-40 PSI.
Solenoid Valve: 24V Solenoid Valve.
Auto Flush Valve: One Auto-Flush Valve.
Easy Maintenance & Operation: feature a compact design and have all of their components strategically located for easy access and inspection.
Design: Wall Mount.
Weight: Standalone: 50 lbs. , with Storage Tank Kit: 120 lbs.
Minimum Feed Pressure: 35 PSI
Operating Pressure: 150 PSI
Dimensions: 7x22x31
Feed Connection: 1/4"
Maximum Feed Water TDS: 1000 ppm
PH range: 3-11
Gallons per day: 200 at 77 F
System Optional Features
Select "With Options" if you want Features Below to be installed by us:
TDS Meter: One panel mount TDS meter, provides you with accurate readings of the feed and product water quality.
Concentrate Re-cycle Valve: This feature offers a higher recovery rate for the system by taking a percentage of the waste water and feeding it back into the system.
Inquire about other optional components:
2.5” x 14” Stainless Steel Membrane Housing, 3/8” FNPT
