100 Gpd Residential Reverse Osmosis Systems combine advanced reverse osmosis and carbon filtration technologies to produce the best quality water available for point-of-use applications.
■ Thin Film (TF) Composite Membrane■ High Quality Pre and Post Filters■ 3.2 Gallon Storage Tank■ Faucet, Wrench and Tubing Included■ Quick Connect Fittings■ 100% Tested in the USA■ 100% Assembled in the US

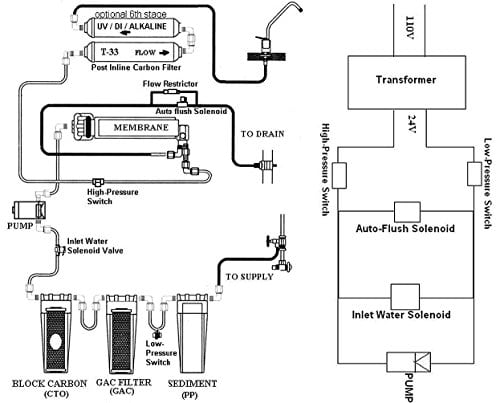

5 Stage Reverse Osmosis Systems with Booster Pump

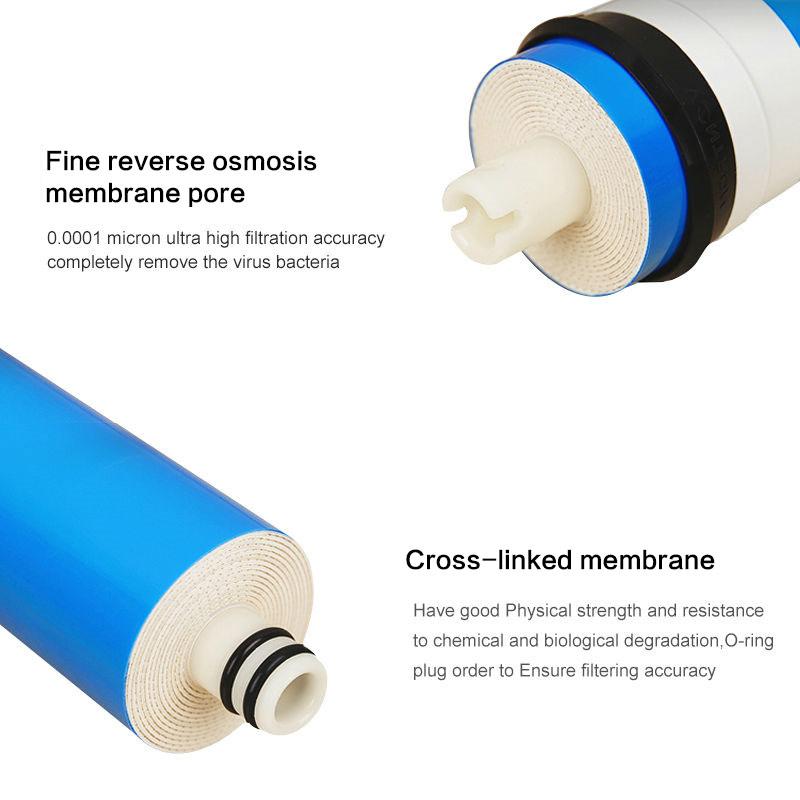

■ Thin Film Composite Membrane
■ 5 Micron Sediment Filter
■ Carbon Block
■ GAC Cartridge
■ Inline Post Carbon
■ Slim Line Filter Housings
■ Booster Pump
■ Long Reach Non-Air Gap Faucet
■ 3.2 Gallon White Storage Tank
■ All Necessary Components For Quick & Easy Installation
■ Standard 110V 60HZ ■ John Guest® Quick Connect Fittings
■ 100% Tested & Assembled In The U.S.A.
■ 1-Year Limited Warranty (NOT INCLUDED MEMBRANES AND FILTERS)
Tech Note: The booster pump boosts the operating pressure to an average of 60 psi and allows for improved performance of the system when there is low feed water pressure, low production or high feed water TDS.
System Specifications
Daily Production Rates gpd (lpd): 50 (189.3), 75 (283.9), 100 (378.5), 150 (567.8)
Tank Capacity: 4 Gallons (3.2 Net)
Tank Dimensions inch (cm): 11 x 14 (27.9 x 35.6) (W x H)
Recovery Rate Ratio: 1:4 (Product to Waste)
System Weight lb. (kg): 25 (11.34)
System Dimensions inch (cm): 7 x 16 x 17 (17.7 x 40.6 x 43.1) (L x W x H)
Shipping Box Dimensions inch (cm): 18 x 19 x 20 (45.7 x 48.2 x 50.8) (L x W x H)
General Operating Specifications
Nominal Salt Rejection: 98%
Operating Pressure psi (bar): 40 – 80 (2.75 – 5.51)
Operating Temperature °F (°C): 40 – 90 (4.44 – 32.22)
Water Hardness gpg: <7
Maximum Turbidity NTU: <1
pH Range: 4 – 11
